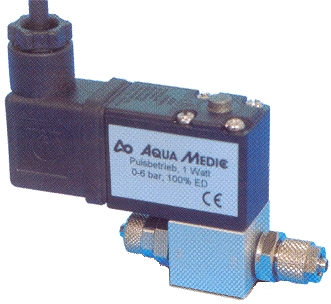

| The M-ventil (solenoid valve) features the latest technology - pulse control. Energy is only consumed during the switching process and with a power uptake of less than 1 watt, no heating effect can be detected in the valve body, even under continuous switching duty. The body is manufactured from anodised aluminium with nickel plated fittings and has a maximum operating pressure of 6 bar. The valve is supplied with an aluminium mounting bracket. Technical data:
230 V/50 Hz
Power consumption: 1 watt
fittings for hose 4/6 mm
maximum pressure: 6 bar
suitable for all CO² units and also for osmosis units up to 150 litres per day recommended |
 |
ab Aqua Medic M - ventil
