PVC Hose Nozzle with union nut

HappyDiskus.com ✮ Aquaristikshop.com USA

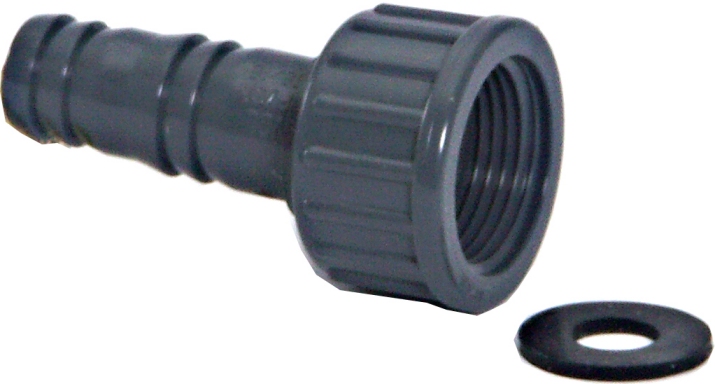

With PVC fittings you can realise a complete pipe system for your aquarium. You can connect pumps, filters and more than one aquarium to a system. All PVC fittings will be glued with a special PVC glue. PVC Hose Nozzle with union nut and rubber washer The Hose nozzle has a connector for a aquarium hose at the one side and a union nut with rubber washer at the other side .

Actual product may vary from the image shown.

Overview

PVC Hose nozzle with union nut and rubber washer The Hose nozzle has a connector for a aquarium hose at the one side and a union nut with rubber washer at the other side

available in the following sizes:
- 12 mm x 1/2 inch
- 16 mm x 3/4 inch
- 20 mm x 1 inch
- 25 mm x 1/14 inch
- 31 mm x 1 1/2 inch
- 40 mm x 2 inch
- 50 mm x 2 1/4 inch
- 60 mm x 2 3/4 inch

Please find the exact dimensions at the infopage.

Hose nozzle C

Size	d1	d2	d3	Z	B	C	D
16 mm x 3/4"	16 mm	18 mm	3/4"	17 mm	18 mm	40 mm	11 mm
20 mm x 1"	20 mm	22 mm	1"	17 mm	20 mm	44 mm	11 mm
25 mm x 1 1/4"	25 mm	28 mm	1 1/4"	17 mm	24 mm	54 mm	43 mm
31 mm x 1 1/2"	31 mm	34 mm	1 1/2"	20 mm	28 mm	63 mm	13 mm
40 mm x 2"	40 mm	43 mm	2"	20 mm	32 mm	72 mm	15 mm
50 mm x 2 1/4"	50 mm	53 mm	2 1/4"	23 mm	35 mm	80 mm	16 mm
60 mm x 2 3/4"	60 mm	66 mm	2 3/4"	23 mm	40 mm	90 mm	21 mm
